Ploughshare mixer — built by Altebo

Industrial mixers

Ploughshare mixer

Ploughshare mixer for recipes in which an additive at under 1 % has to be distributed evenly through the whole batch — enzymes, vitamins, pigments, technical additives. Also supplied to the construction materials industry.

Also known as: plough mixer · ploughshare blender · fluidised bed batch mixer

additives under 1 % distributed evenlyalso supplied for construction materials

Individually sized on your material and your process. Technical proposal and price normally within 48 hours. Delivery across the EU and the Republic of Moldova.

How it works

The ploughshare mixer mixes by mechanical fluidisation and is chosen where the recipe contains components at very low concentrations — additives, enzymes, vitamins, pigments — that have to be distributed evenly through the entire batch, in a short time.

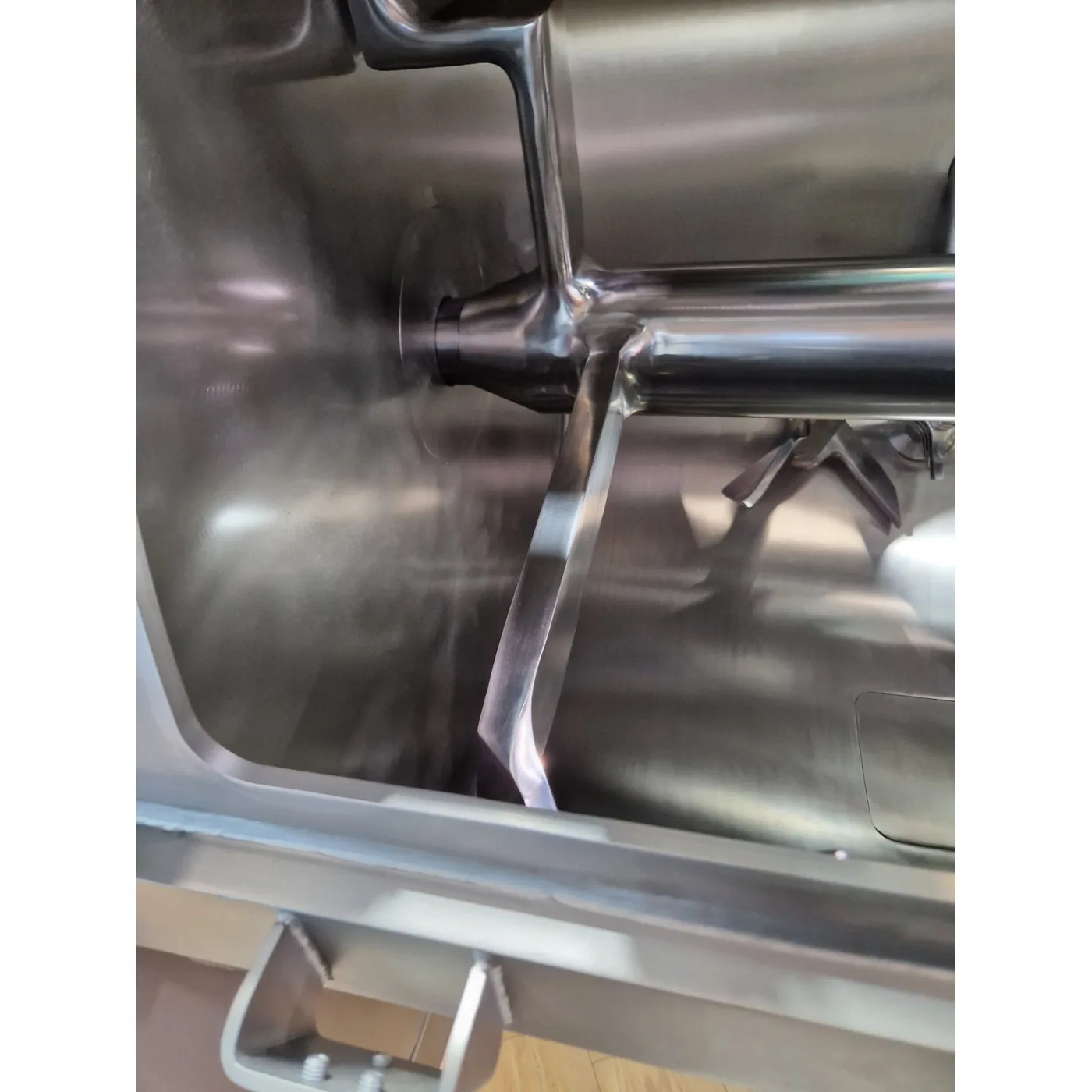

The plough-shaped tools, mounted on the central shaft and rotated at high peripheral speed, cut through the material layer and throw it into the free space of the cylindrical drum. The product passes into a fluidised state in which particles intermingle freely, and the mix reaches homogeneity within minutes, with gentle mechanical action on the granules.

For recipes with agglomerates or liquid addition, independently driven chopper blades are fitted in the drum to disperse lumps and sprayed liquid. The AISI 304/316L stainless or carbon steel build includes inspection covers, product-specific seals and discharge through a pneumatic valve.

Plough-shaped tools

Mechanical fluidisation of the product — mixing throughout the whole batch.

Distribution at low concentrations

Additives disperse evenly, even at dosages below 1 %.

Chopper blades (optional)

Break up agglomerates and disperse liquid sprayed into powder.

Gentle action

Granule structure is preserved despite the mixing speed.

When to choose it

The concrete situations in which this machine is the right answer — and the one in which we would point you to something else in our range.

  • The recipe contains an expensive or active additive at a very low concentration — enzyme, vitamin, pigment — and uneven distribution means a rejected lot.

  • You mix powders that agglomerate: independently driven chopper blades break up the lumps during mixing.

  • The product consists of granules that must not be broken — fluidisation throws the material into the free space of the drum rather than pressing it against the wall.

  • You produce construction materials and need homogenising at industrial line throughput — the same principle we have supplied in that industry.

When this is NOT the right machine

For pharmaceutical powders requiring zero shear and validatable cleaning, ploughs rotating at high peripheral speed are too aggressive.

See V-blender
Line of stainless steel reactors and process vessels built by Altebo in its own production hall

Own production

Built entirely in our own plants

Cutting, welding, machining, assembly, testing and automation — the whole chain runs in our plants in Tomești (Iași county) and Bălți. Nothing is subcontracted.

Specifications

The ranges we build routinely. Final dimensions and installed power follow from the density and viscosity of the product, the batch size and the process conditions.

Technical specifications — Ploughshare mixer
Capacity100 – 15,000 L / batch
Product contact materialAISI 304 / 316L stainless or carbon steel
Motor power4 – 110 kW
DriveHigh-speed gearmotor
Chopper bladesIndependently driven, side-mounted (optional)
Minimum additive concentrationBelow 1 % of the batch
OptionsChopper blades · liquid spray nozzles · thermal jacket · vacuum

The figures above are the ranges we build routinely, not construction limits. We design and manufacture any capacity, power rating and envelope to order — including below or above the ranges in the table.

Build variants

What actually changes between them — not just what they are called.

Standard, without choppers

Just the ploughs on the central shaft. Sufficient for free-flowing powders that do not form agglomerates.

With chopper blades

One or more chopper groups with their own motors, side-mounted. They break up agglomerates and disperse sprayed liquid — visible in the photograph of our machine, with three groups mounted on the body.

With a thermal jacket

For processes where the product is heated or cooled during mixing.

Under vacuum

For vacuum drying the product during mixing, at lower temperatures than at atmospheric pressure.

Where it is used

The industries we build this machine for — each with its own execution requirements.

Photographs

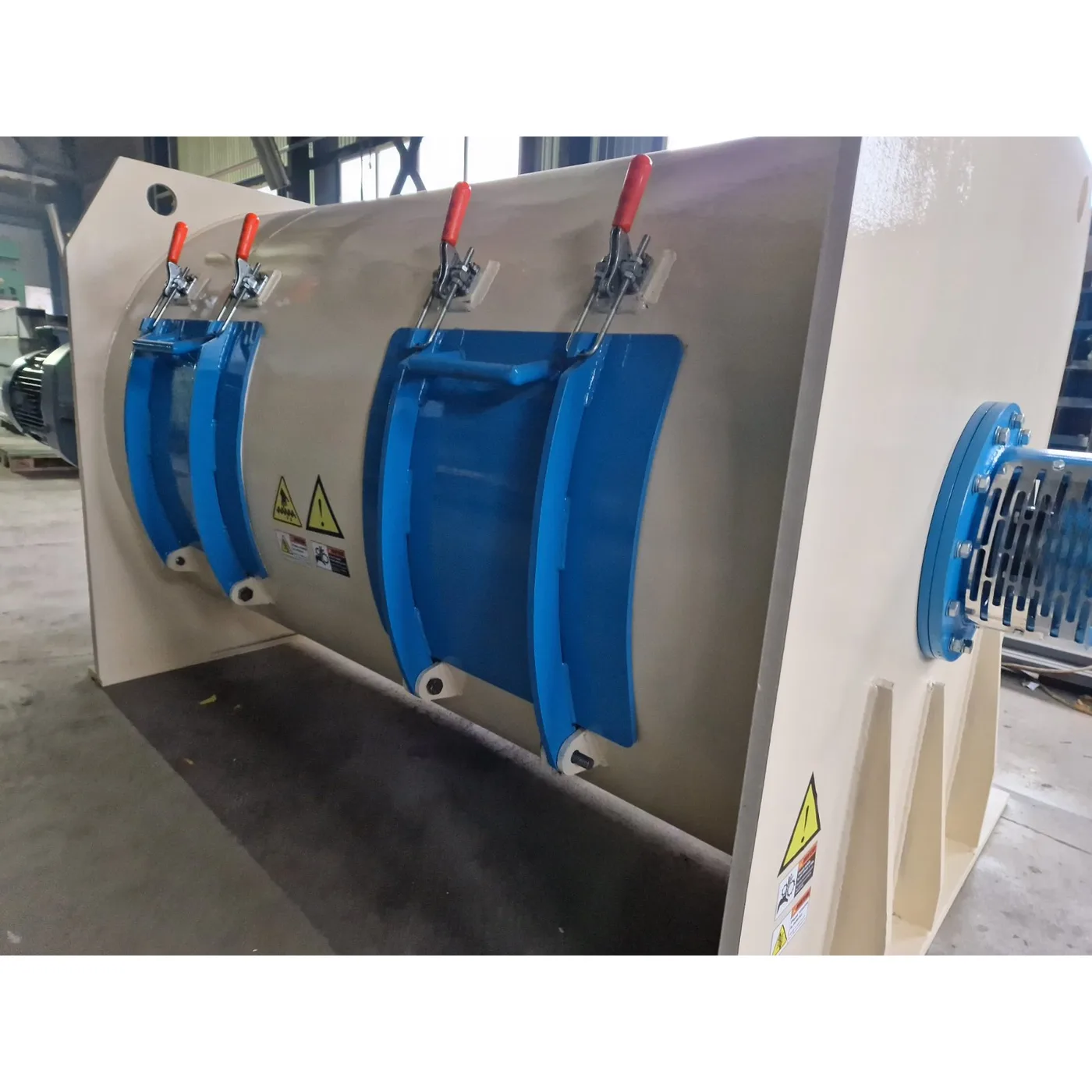

Ploughshare mixer
Ploughshare mixer — product photograph.

Frequently asked questions

Question not answered here? Write to us — an engineer replies, not a bot.

How small can the additive dosage be?

Below 1 % of the batch mass — that is the typical situation for which this mixer is chosen. The smallest dosage tested is given in the specification table, in the “Minimum additive concentration” row.

What are the chopper blades for and when are they needed?

They are groups of blades with their own motor, side-mounted on the drum, rotating much faster than the main shaft. You specify them in two situations: when the powder forms lumps, and when you add liquid over the dry phase — without them, the liquid creates agglomerates that will not break down again.

How is it different from a paddle mixer?

In peripheral speed. The ploughs rotate fast enough to throw the material into the free space of the drum — the product is fluidised, not merely tumbled. That is why they distribute very low-concentration additives more reliably, but they also draw more power at the same capacity.

Does it break up granules at that speed?

The action is gentle precisely because the material is thrown into free space rather than pressed between the tool and the wall. If your product is unusually fragile, tell us — we size the peripheral speed for it.

Have you supplied mixers like this to major producers?

Yes — we have supplied ploughshare mixers for blending construction materials.

Can it be cleaned completely between recipes?

The cylindrical drum has inspection covers and the ploughs leave accessible surfaces.

Typical applications

Need a version adapted to your process?

Describe the material, the batch size and the process conditions — we size the equipment exactly on the application.
