Continuous twin-shaft mixer — built by Altebo

Industrial mixers

Continuous twin-shaft mixer

Continuous twin-shaft mixer for clay, ceramic bodies, cement-based mixes and sludge — mixes and conveys at the same time, at a constant rate between 1 and 30 m³/h.

Also known as: pug mill mixer · pugmill · continuous clay mixer · continuous paddle mixer

1 – 30 m³/h continuousindividually replaceable paddles

Individually sized on your material and your process. Technical proposal and price normally within 48 hours. Delivery across the EU and the Republic of Moldova.

How it works

This is a twin-shaft mixer working in continuous flow, intended for viscous and plastic materials: clay and ceramic bodies, cement-based mixes, sludge and similar compositions. It is installed in the line, between the feed and the downstream machine, which it supplies with homogeneous material at a constant rate.

The two parallel shafts, fitted with helically arranged paddles, mix the material and convey it simultaneously from the feed opening to the discharge. Along the way, the composition is continuously sheared and kneaded between the paddles and the mixing chamber walls — the plasticising process characteristic of clay working — and what leaves the discharge is a uniform mass with evenly distributed moisture.

The mixing chamber and paddles are built in treated wear-resistant steel, with individually replaceable paddles and, on request, in stainless for corrosive media. The throughput is matched to the line by adjusting the speed from a frequency inverter, and hinged covers give quick access for cleaning and paddle changes.

Continuous operation

Mixes and conveys at once — constant rate to the downstream machine.

Plasticising by shear

Continuous kneading between the paddles and the mixing chamber.

Replaceable wear-resistant paddles

Treated steel, changed individually — low maintenance cost.

Adjustable throughput

Speed from a frequency inverter, matched to the pace of the line.

When to choose it

The concrete situations in which this machine is the right answer — and the one in which we would point you to something else in our range.

  • The line runs continuously rather than in batches: the downstream machine has to be fed constantly with homogeneous material at a steady rate.

  • You process clay or ceramic bodies that have to be plasticised — the continuous shear between paddles and walls is the plasticising process itself.

  • The material has uneven moisture at the inlet and it has to be equalised before the next machine.

  • The composition is abrasive and you want cheap maintenance: paddles are replaced individually, without changing the mixing chamber.

When this is NOT the right machine

If you produce on frequently changing recipes and need traceability for every batch, a continuous machine does not give you lot separation.

See Twin-shaft mixer
Line of stainless steel reactors and process vessels built by Altebo in its own production hall

Own production

Built entirely in our own plants

Cutting, welding, machining, assembly, testing and automation — the whole chain runs in our plants in Tomești (Iași county) and Bălți. Nothing is subcontracted.

Specifications

The ranges we build routinely. Final dimensions and installed power follow from the density and viscosity of the product, the batch size and the process conditions.

Technical specifications — Continuous twin-shaft mixer
Throughput1 – 30 m³/h (continuous)
MaterialWear-resistant steel; stainless on request
Motor power5.5 – 75 kW
DriveGearmotors on two shafts
PaddlesIndividually replaceable, helically arranged
OptionsStainless build · hinged covers · metered water feed

The figures above are the ranges we build routinely, not construction limits. We design and manufacture any capacity, power rating and envelope to order — including below or above the ranges in the table.

Build variants

What actually changes between them — not just what they are called.

Wear-resistant steel

The standard version, for clay, cement and ceramic bodies.

Stainless build

For corrosive media and for chemically aggressive sludge.

With metered water feed

A water manifold on the mixing chamber, for correcting moisture directly in the process.

Where it is used

The industries we build this machine for — each with its own execution requirements.

Photographs

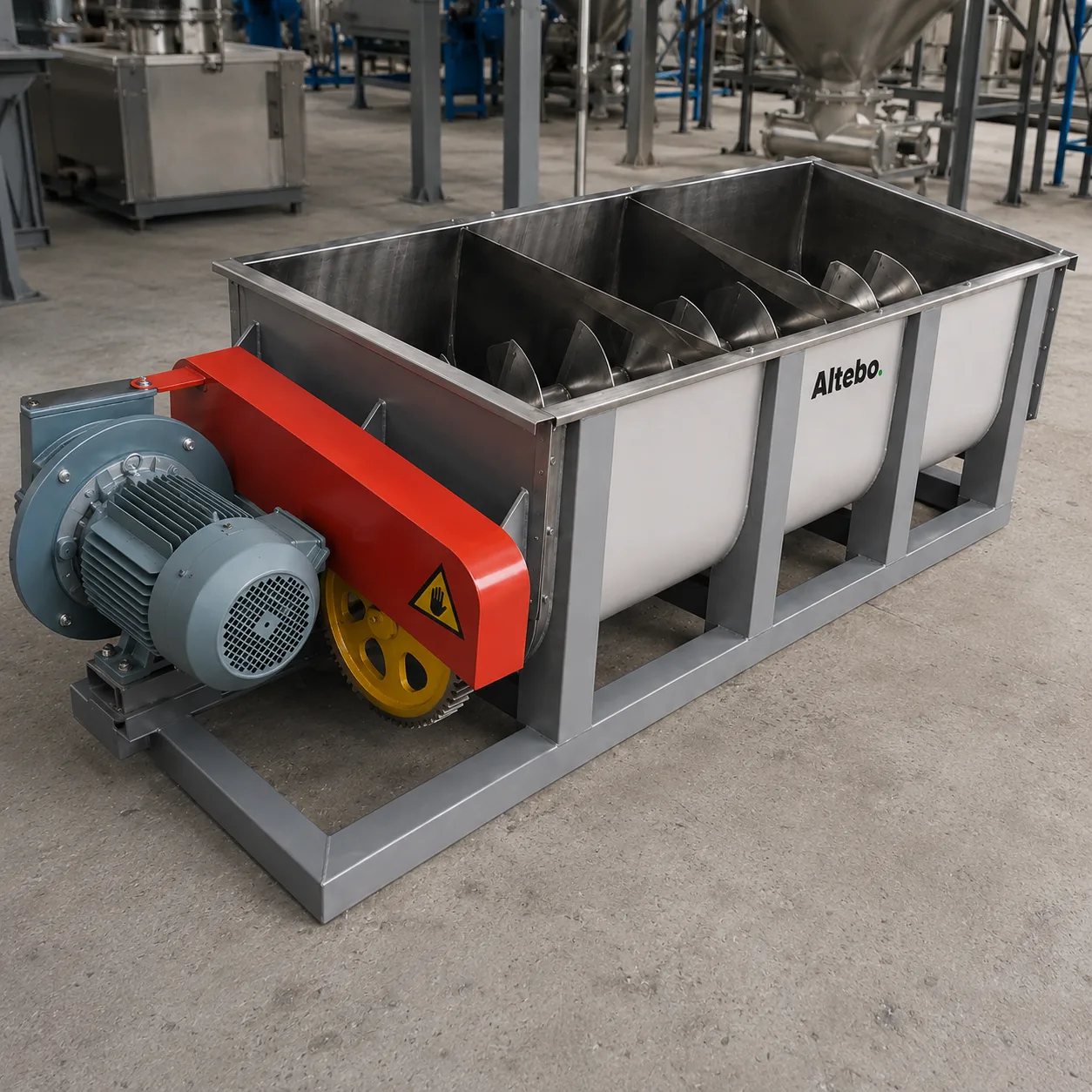

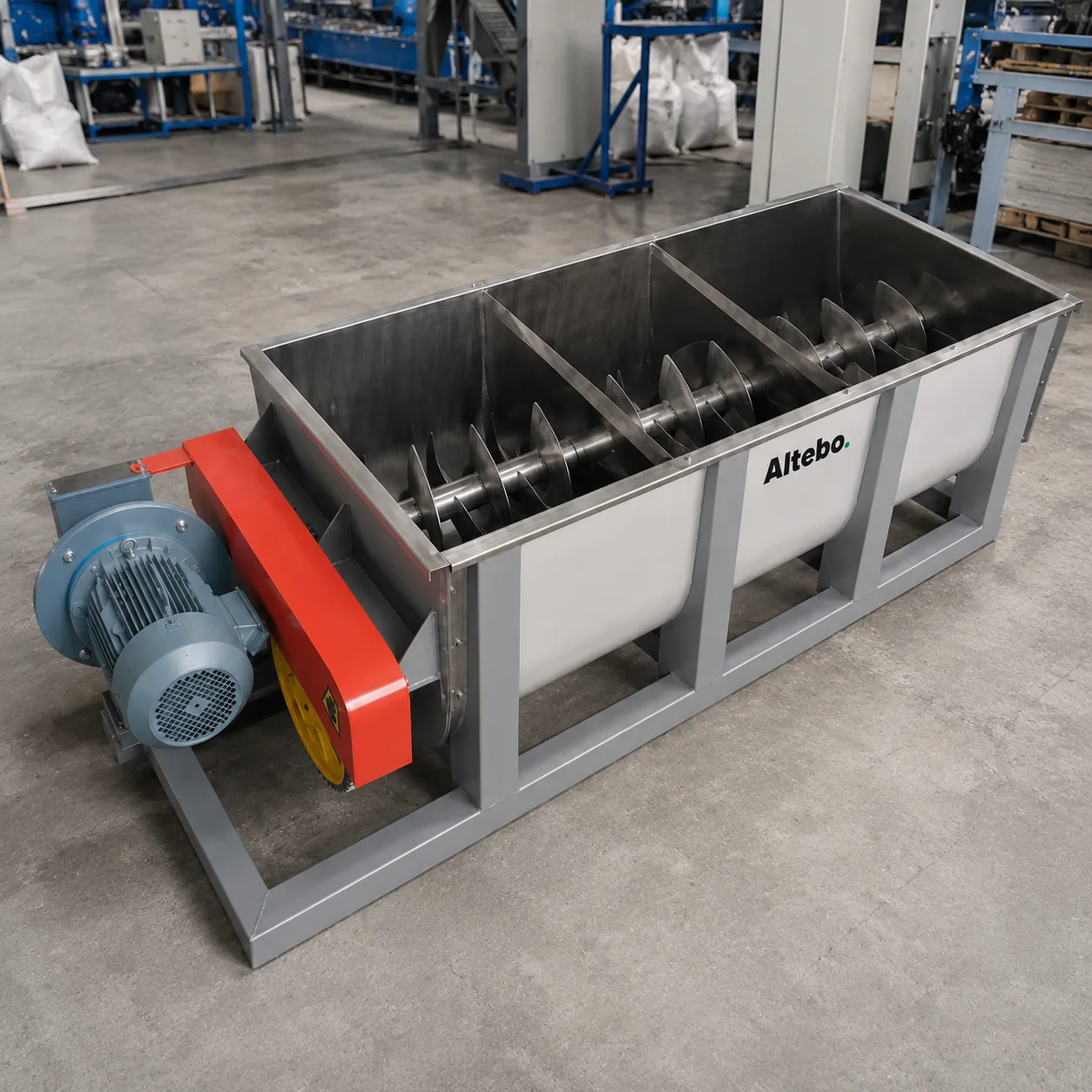

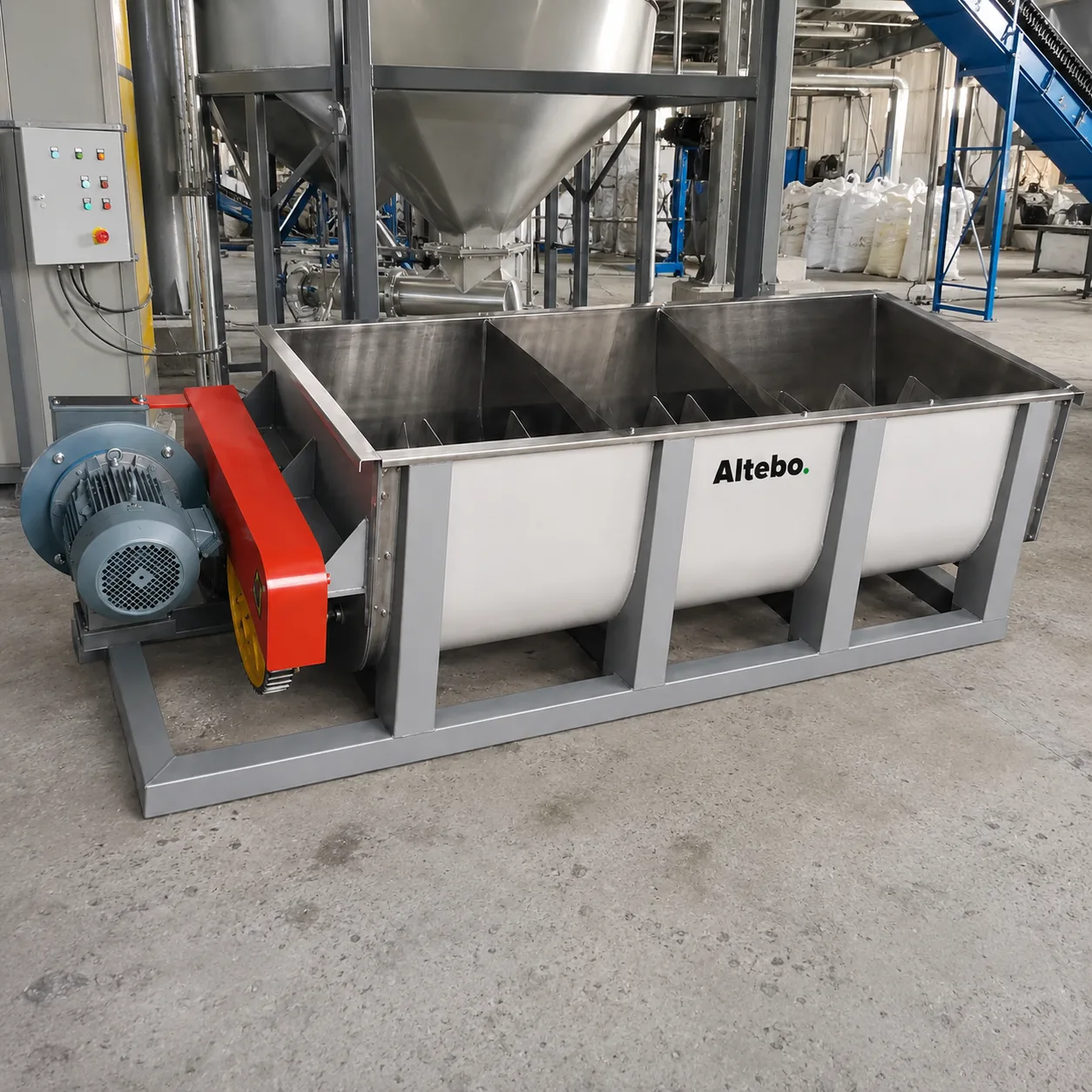

Continuous twin-shaft mixer
Continuous twin-shaft mixer — product photograph.

Frequently asked questions

Question not answered here? Write to us — an engineer replies, not a bot.

How does it differ from a batch mixer?

In that feeding and discharge are simultaneous: material enters at one end and leaves homogeneous at the other, without stopping. You gain a constant rate to the downstream machine, but you lose lot separation — you cannot say that a given quantity was mixed separately.

What throughput can it sustain?

We build routinely between 1 and 30 m³/h, and the rate is adjusted from a frequency inverter to match the pace of the line. This is not a construction limit — we size to order above it as well.

How often are the paddles changed?

Paddles are changed individually, without dismantling the mixing chamber — which is why it is routine maintenance rather than a repair.

Can it correct the moisture of the material?

Yes, with a water manifold fitted on the mixing chamber — see the “With metered water feed” version.

Does it clog with sticky material?

Hinged covers give quick access along the whole chamber for cleaning.

Can it be installed in an existing line?

Yes — the position of the feed and discharge openings is set on the route in your plant. Send us the line layout and the throughput required by the downstream machine.

Typical applications

Need a version adapted to your process?

Describe the material, the batch size and the process conditions — we size the equipment exactly on the application.
